Name: Corrosion Resistant Oil Resistant Strong Acid Resistant FEP Insulated Wire Silver Plated Copper Cable
Brand: Xiangtan Shenzhou Special Cable Co., Ltd
SKU: AF-200 Serisi
Price: 1.10 USD
Availability: InStock

Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi

Özellikleri

Teknik Özellikler

İletken malzemesi: Bakır, Kalaylı Bakır veya Gümüş Kaplamalı Bakır

Yalıtım malzemesi: Şubat

İletken Tipi: Mahsur, mahsur veya sağlam

Çalışma sıcaklığı: -65°C ~ +200°C

Nominal Gerilim: AC 600V veya Daha Düşük

Renk: Beyaz, mavi, kırmızı, siyah, sarı, yeşil, şeffaf, sarı/yeşil

Sayı çekirdeği: Tek Çekirdek veya Çoklu Çekirdekler

Yalıtım türü: FEP, PTFE, PFA İzoleli

Telli izleme: 36AWG'den 8AWG'ye

Kesit alanı: 0,013mm2 ila 8mm2

İletken yapısı: 7/0,05 ila 133/0,28

Maks OD: 0,65 mm ila 7,3 mm

Nominal Sıcaklık: -65C~+200°C

Voltaj derecesi: 250V, 600V

Kablo tipi: AF-200, AF-200-1, AFP-200, AFS-200, AFSP-200

Vurgulamak:

Corrosion Resistant FEP Insulated Wire

Oil Resistant Silver Plated Copper Cable

Strong Acid Resistant High Temperature Wire

Temel bilgiler

Menşe yeri: Hunan, Çin

Marka adı: Sanco cable

Model numarası: AF-200 Serisi

Ödeme & teslimat koşulları

Fotoğraf Galerisi

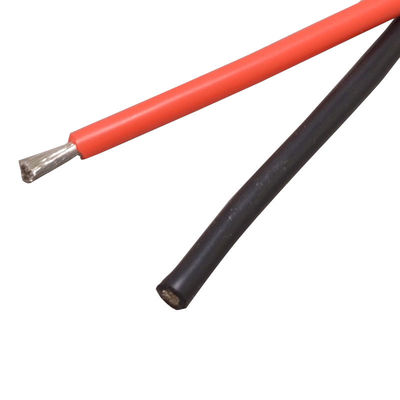

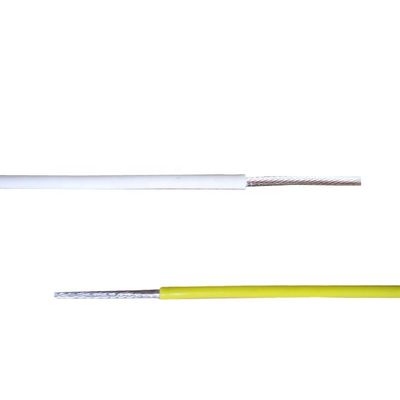

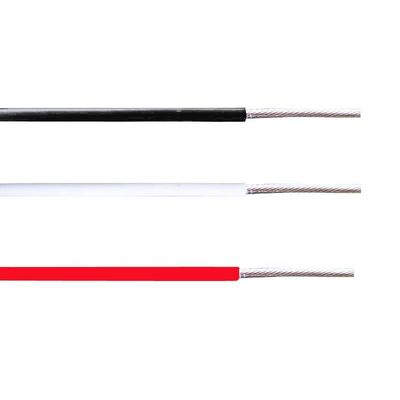

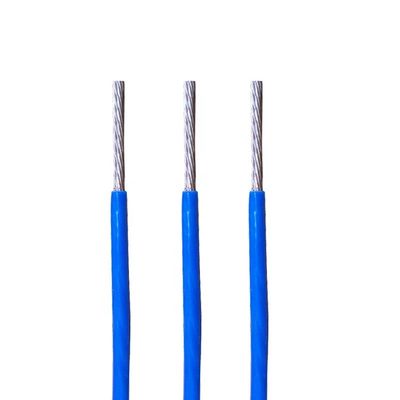

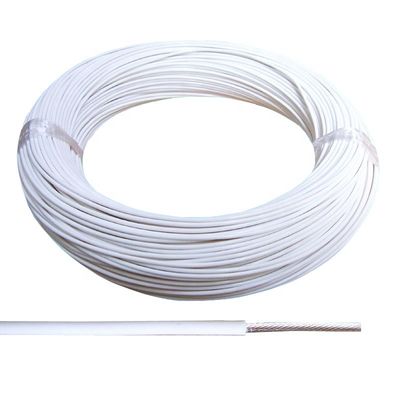

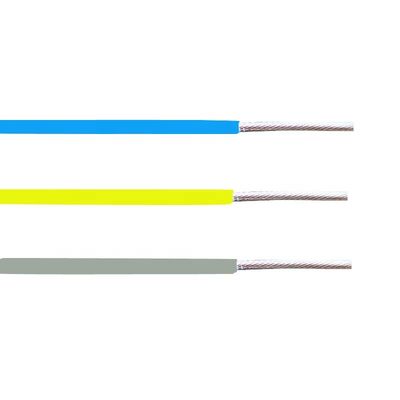

Corrosion Resistant Oil Resistant Strong Acid Resistant FEP Insulated Wire Silver Plated Copper Cable

Ürün Açıklaması

Solid/Stranded Single Core Silver Plated Copper Cable Wire

Product Description

FEP Insulation Wires offer excellent corrosion resistance, oil resistance, and withstand strong acids, alkalis, and oxidants. These wires feature superior electrical insulation performance with high voltage resistance, minimal high-frequency loss, moisture resistance, and excellent insulation properties. They are highly fire-resistant, durable, and have an extended service life.

Applications include:

Electronic industry: Temperature compensation wire, low/high temperature heating wire, aging-resistant wire, and flame retardant wire
Household appliances: Internal wiring for air conditioners, microwave ovens, electronic disinfectors, rice cookers, electric heaters, ovens, frying pans, and lighting fixtures

Product Features

Wear and scratch resistant
Easy to strip
High and low temperature resistant (-65°C to +200°C)
Anti-aging and corrosion resistant
Electromagnetic interference resistant

Cable Specifications

Conductor Materials	Tinned Plated Copper, Silver Plated Copper, Bare Copper
Conductor Type	Stranded or Solid
Number Core	Single Core or Multiple Cores
Insulation	FEP, PTFE, PFA Insulated
Rated Voltage	600V or Below
Rated Temperature	-65°C to +200°C
Color	White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green

Type and Name

Type	Name
AF-200	Silver Plated Copper Core FEP Insulation Install Wire
AF-200-1	Tin Plated Copper Core FEP Insulation Install Wire
AFP-200	Tin Plated or Silver Plated Copper Core FEP Insulation Shield Install Wire
AFS-200	Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Install Wire
AFSP-200	Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire

Cable Structures

Wire gauge	Cross-section area	Conductor structure	Max. OD of cable
36AWG	0.013mm²	7/0.05	0.65 \| 0.85 \| 1.1 \| 1.3
32AWG	0.035mm²	7/0.08	0.75 \| 0.95 \| 1.2 \| 1.4
30AWG	0.05mm²	7/0.10	0.85 \| 1.05 \| 1.35 \| 1.6
28AWG	0.07mm²	7/0.12	0.9 \| 1.1 \| 1.4 \| 1.65
-	0.1mm²	7/0.14	1 \| 1.2 \| 1.55 \| 1.75
26AWG	0.14mm²	7/0.16	1.1 \| 1.3 \| 1.65 \| 1.95
24AWG	0.2mm²	19/0.12	1.2 \| 1.4 \| 1.75 \| 1.98
-	0.3mm²	7/0.23	1.25 \| 1.48 \| 1.8 \| 2.05
22AWG	0.35/0.40mm²	19/0.16	1.4 \| 1.6 \| 1.95 \| 2.2
20AWG	0.5mm²	19/0.18	1.6 \| 1.8 \| 2.2 \| 2.4
-	0.6mm²	19/0.20	1.75 \| 1.98 \| 2.3 \| 2.5
-	0.75/0.80mm²	19/0.23	1.8 \| 2.1 \| 2.4 \| 2.6
18AWG	1mm²	19/0.26	2 \| 2.2 \| 2.6 \| 2.9
16AWG	1.2mm²	19/0.28	2.2 \| 2.4 \| 2.8 \| 3.1
-	1.5mm²	19/0.32	2.4 \| 2.6 \| 3.1 \| 3.3
14AWG	2mm²	19/0.37	2.7 \| 2.9 \| 3.4 \| 3.6
-	2.5mm²	37/0.30	3.4 \| 3.6 \| 4.2 \| 4.4
12AWG	3mm²	37/0.32	3.6 \| 3.8 \| 4.4 \| 4.6
-	4mm²	37/0.37	4 \| 4.2 \| 4.8 \| 5.1
10AWG	5mm²	37/0.41	4.5 \| 4.7 \| 5.3 \| 5.6
-	6mm²	37/0.45	4.8 \| 5 \| 5.7 \| 5.9
8AWG	8mm²	133/0.28	6 \| 6.5 \| 6.8 \| 7.3

Note: FEP high temperature lead wire specifications and core numbers are not limited to above regulations and can be customized.

Company Information

Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier for China's aerospace and military sectors with 21 years of experience. We produce our own cable compounds, enabling us to maintain superior quality and competitive pricing for global customers.

Our main products include:

High Temperature wires
PTFE cable
FEP Cable
PFA Wire
ETFE Cable
Fluoroplastic Cables
Hook up wire
Electronic cable
Power cable

We have advanced production facilities, an integrated management system, and collaborate with universities and research institutes. We offer custom cable solutions to meet specific customer requirements.

Exhibition & Visit

In past years, we have participated in the Middle East Electricity Exhibition in Dubai, China-ASEAN Exposition, Power-Gen India, and other industry events.

Certification

Our Honors:

Contributed to China's manned space flight project development for Shenzhou 7
Participated in China's first manned space flight project development and testing
Collaborated with China Academy of Launch Vehicle Technology on the "Arrow of God" project for astronaut space exploration

Packing & Shipping

FAQ

Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer specializing in research, development, and sales of military and consumer cable wire and cable compounds. Our facility is located in Hunan Province, China.

Q: What is your company's strengths?

A: As a 21-year supplier to China's aerospace and military sectors, we produce our own cable compounds. This vertical integration allows us to maintain superior quality while offering competitive pricing.

Q: How do you guarantee your product quality?

A: Quality is our top priority. We implement strict quality control measures throughout the entire process - from design and material procurement to manufacturing, semi-finished product testing, and final inspection.

Q: What's the warranty of your products?

A: We provide a 1-year comprehensive warranty. If products have quality issues, we offer unconditional replacement or refund.

Q: How can I get the samples?

A: We can prepare sample orders. For small quantities available in stock, samples may be provided free of charge (customer responsible for freight).
