Ana sayfa /Ürünler/FEP İzoleli Tel/Corrosion Resistant Oil Resistant Strong Acid Resistant Silver Plated FEP Aircraft Wire for High Temperature Applications

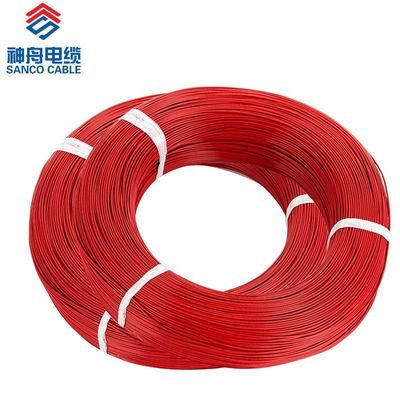

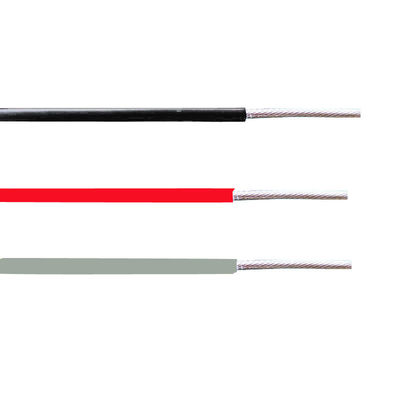

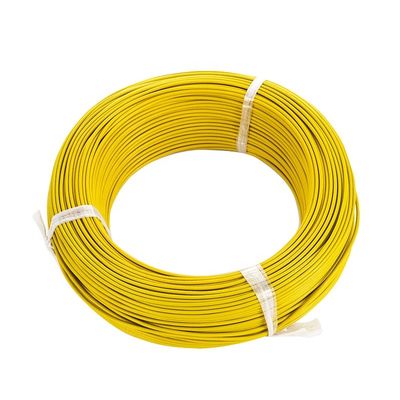

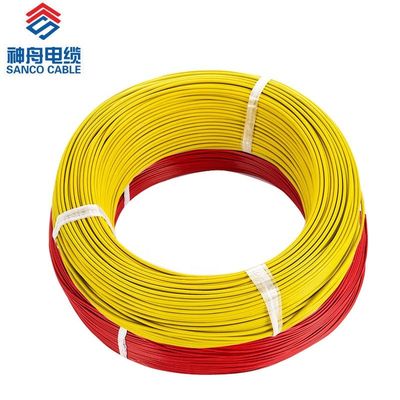

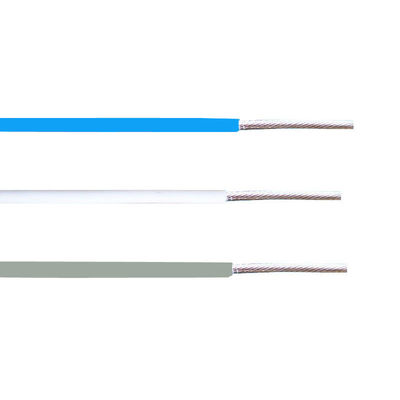

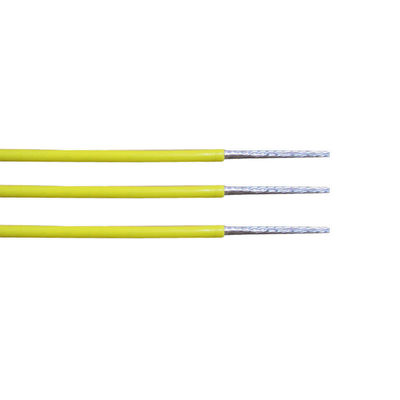

Corrosion Resistant Oil Resistant Strong Acid Resistant Silver Plated FEP Aircraft Wire for High Temperature Applications

500
MOQ
Corrosion Resistant Oil Resistant Strong Acid Resistant Silver Plated FEP Aircraft Wire for High Temperature Applications
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
İletken malzemesi: Bakır, Kalaylı Bakır veya Gümüş Kaplamalı Bakır
Yalıtım malzemesi: Şubat
İletken Tipi: Örgülü veya Katı
Sayı çekirdeği: Tek Çekirdek veya Çoklu Çekirdekler
Nominal Gerilim: 600V veya Altı
Nominal Sıcaklık: -65°C ~ +200°C
Telli izleme: 36AWG'den 8AWG'ye
Kesit alanı: 0,013mm² ila 8mm²
İletken yapısı: 7/0,05 ila 133/0,28
Maks OD: 0,65 mm ila 7,3 mm
Renk Seçenekleri: Beyaz, mavi, kırmızı, siyah, sarı, yeşil, şeffaf, sarı/yeşil
Yalıtım türü: FEP, PTFE, PFA
Örgülü Tip: Örgülü veya Katı
Çalışma sıcaklığı: -65°C ~ +200°C
Voltaj derecesi: AC 600V veya Daha Düşük
Vurgulamak:

Corrosion Resistant FEP Aircraft Wire

,

Oil Resistant FEP Insulated Wire

,

Strong Acid Resistant Silver Plated FEP Wire
Temel bilgiler
Menşe yeri: Hunan, Çin
Marka adı: Sanco cable
Model numarası: AF-200 Serisi
Ödeme & teslimat koşulları
Ürün Açıklaması
AF200 Silver Plated FEP Aircraft Wire

FEP Insulation Wires feature excellent corrosion resistance, oil resistance, and resistance to strong acids, alkalis, and oxidants. They offer superior electrical insulation performance with high voltage resistance, minimal high-frequency loss, moisture resistance, and excellent insulation properties. These wires also provide outstanding fire resistance, aging resistance, and long service life.

Applications include:

  • Electronic industry: Temperature compensation wire, low/high temperature wire, aging wire, flame retardant wire
  • Household appliances: Internal wiring for air conditioners, microwave ovens, electronic disinfecting cabinets, rice cookers, electric heaters, ovens, frying pans, and lighting fixtures
Product Features
  • Wear and scratch resistant
  • Easy to strip
  • High and low temperature resistant (-65°C to +200°C)
  • Anti-aging and corrosion resistant
  • Electromagnetic interference resistant
Cable Specifications
Conductor Materials Tinned Plated Copper, Silver Plated Copper, Bare Copper
Conductor Type Stranded or Solid
Number Core Single Core or Multiple Cores
Insulation FEP, PTFE, PFA Insulated
Rated Voltage 600V or Below
Rated Temperature -65°C to +200°C
Color White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green
Types and Names
Type Name
AF-200 Silver Plated Copper Core FEP Insulation Install Wire
AF-200-1 Tin Plated Copper Core FEP Insulation Install Wire
AFP-200 Tin Plated or Silver Plated Copper Core FEP Insulation Shield Install Wire
AFS-200 Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Install Wire
AFSP-200 Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire
Cable Structures
Wire gauge Cross-section area Conductor structure Max. OD of cable
