Ana sayfa /Ürünler/PTFE İzoleli Teller/0.5mm2 220V Rated Voltage PTFE Insulated Wire with Silver Coating and 11 Colors for Electronic Appliances

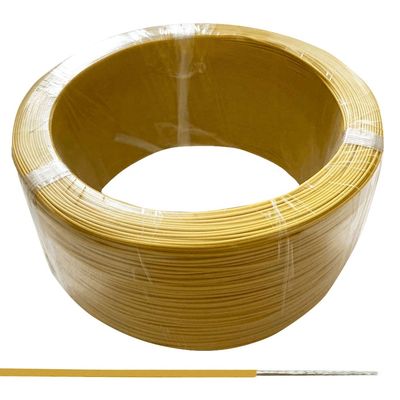

0.5mm2 220V Rated Voltage PTFE Insulated Wire with Silver Coating and 11 Colors for Electronic Appliances

100
MOQ
0.5mm2 220V Rated Voltage PTFE Insulated Wire with Silver Coating and 11 Colors for Electronic Appliances
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
İletken malzeme: gümüş kaplama
Yalıtım malzemesi: PTFE İzoleli
Nominal Voltaj: 220V
İletken tipi: Mahsur
Telli izleme: 0.5mm2
Kalıplama: gümüş kaplama
Çalışma sıcaklığı: -60 ℃ ila +250 ℃
Nominal Voltaj: AC 220V
Telli izleme: 36AWG ~ 3/0AWG
Çekirdek numarası: Tek çekirdekli
Ambalaj uzunluğu: 305 m/rulo
Renk Seçenekleri: 11 Renk
Sıcaklık direnci: 250 derece
İletken Direnci: Düşük direnç
Yalıtım kalınlığı: PTFE filmi
Vurgulamak:

0.5mm2 PTFE Insulated Wire

,

220V Rated Voltage Silver Coated Wire

,

11 Colors High Temperature Wire
Temel bilgiler
Menşe yeri: Hunan, Çin
Marka adı: Sanco cable
Model numarası: AFR-250
Ödeme & teslimat koşulları
Ürün Açıklaması
250 Degree 0.5mm² Silver Coating PTFE Insulation Wire
Product Overview
High Temperature Silver Coating PTFE Insulation Wire is an electrical wire insulated with PTFE film, offering exceptional resistance to high temperatures, chemicals, and electrical insulation properties. Ideal for demanding environments, this wire is commonly used in aerospace, automotive, and industrial applications where reliability and performance are critical.

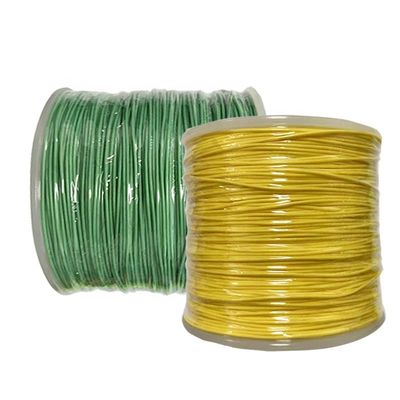

0.5mm2 220V Rated Voltage PTFE Insulated Wire with Silver Coating and 11 Colors for Electronic Appliances 0
Specifications
Application Internal wiring for electronic equipment, electrical appliances, and instruments
Conductor Silver coating copper wire
Insulation PTFE
Conductor Type Stranded
Working Temperature -60℃ to +250℃
Rated Voltage AC 220V
Wire Gauge 36awg~3/0awg
Core Number Single Core
Packing Length 305m/roll
Free Sample Yes
Key Advantages
  • Small outer diameter and lightweight design
  • Excellent flexibility and easy welding
  • High temperature resistance and anti-aging properties
  • Superior anti-interference performance
  • Available in multiple colors: black, brown, red, orange, yellow, green, blue, purple, gray, white, and transparent

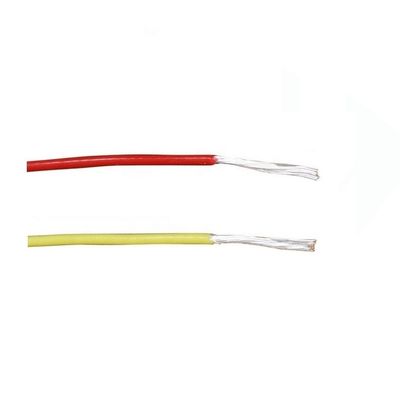

0.5mm2 220V Rated Voltage PTFE Insulated Wire with Silver Coating and 11 Colors for Electronic Appliances 1
Quality Assurance
  • Strict inspection before shipment including annealing test, tensile test, and conductor resistance test
  • 500+ sqm professional testing laboratory
  • Advanced cable testing equipment
  • Professional QC team

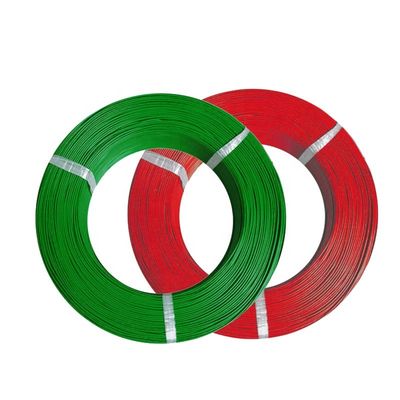

0.5mm2 220V Rated Voltage PTFE Insulated Wire with Silver Coating and 11 Colors for Electronic Appliances 2
Why Choose Our Product
  • 20+ years of special cable R&D and manufacturing experience
  • Certified by CCC, Weapons and Equipment, and ISO9001 systems
  • Supplier for China's aerospace and military programs
  • Low MOQ for custom cables
  • Free samples and design services available
  • 1-3 year warranty period

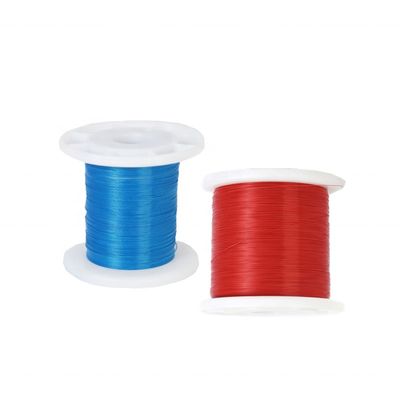

0.5mm2 220V Rated Voltage PTFE Insulated Wire with Silver Coating and 11 Colors for Electronic Appliances 3
